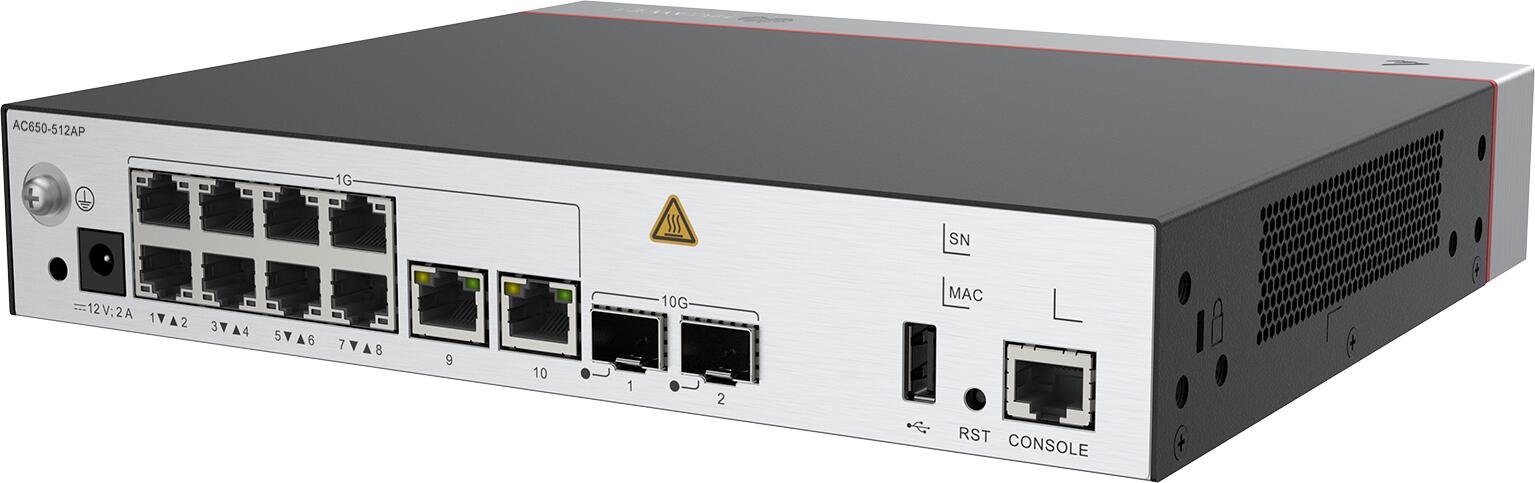

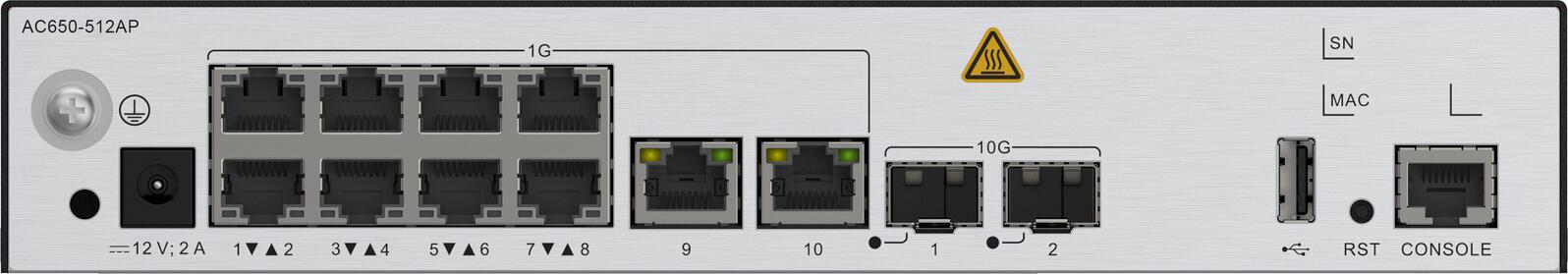

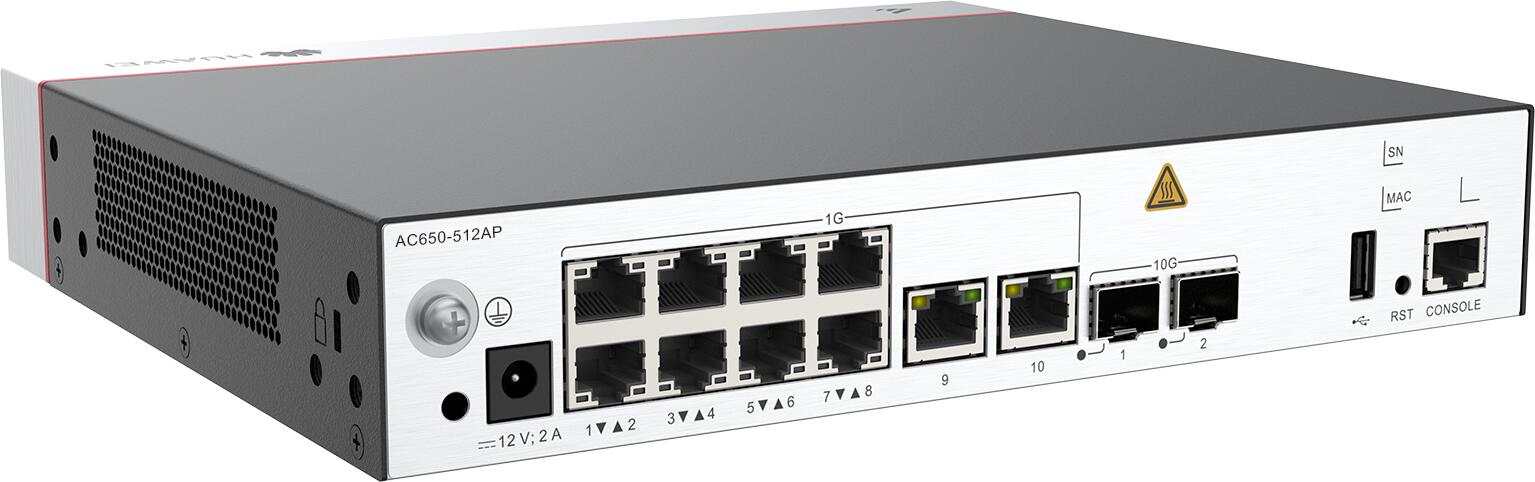

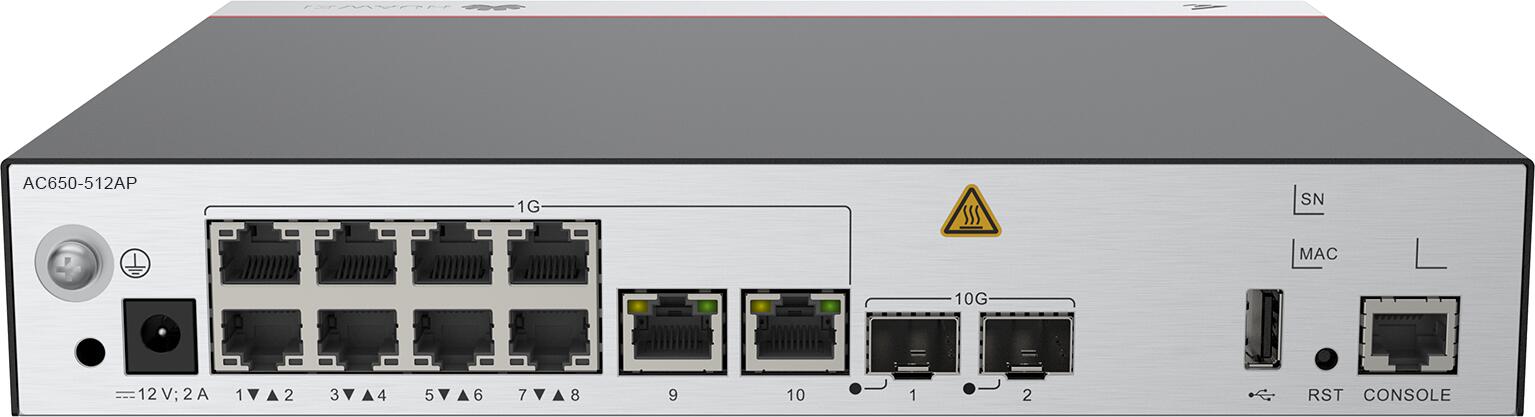

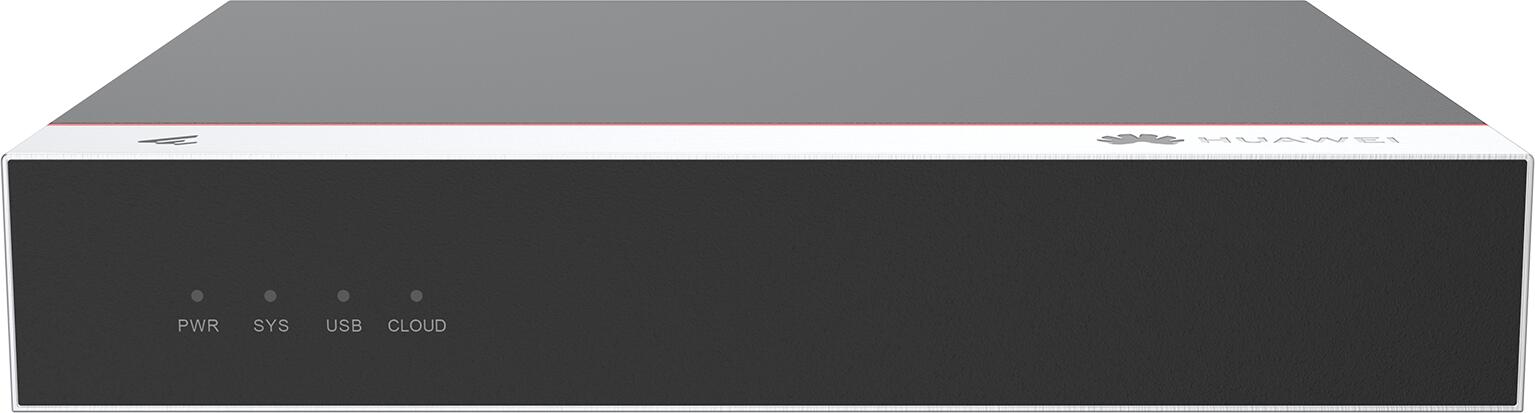

Huawei eKit Wireless Access Controller AC650-512AP 10x 1GbE RJ45 + 2x 10GbE SFP+ 02356EQH

First supported version V200R023C10

Installation Type Rack,Desk,Wall

Dimensions without packaging (H x W x D) [mm(in.)] Basic: 43.6 mm x 250 mm x 210 mm (1.72 in. x 9.84 in. x 8.27 in.) Maximum: 43.6 mm x 250 mm x 215 mm (1.72 in. x 9.84 in. x 8.46 in.)

Dimensions with packaging (H x W x D) [mm(in.)] 110 mm x 465 mm x 335 mm (4.33 in. x 18.31 in. x 13.19 in.)

Weight without packaging [kg(lb)] 1.9kg

Weight with packaging [kg(lb)] 2.55 kg (5.62 lb)

CPU 4-core, 1.2 GHz

Memory DDR4: 4 GB

Console port RJ45

Power supply mode DC adapter

Storage Nand FLASH 1GB

Service port surge protection 6 kV in common mode

Types of fans None

Maximum number of physical ports on the entire device 2 x 10GE (SFP+) + 10 x GE (RJ45)

Long-term operating temperature [°C(°F)] 0°C to 45°C (32°F to 113°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.)

Storage temperature [°C(°F)] –40°C to +70°C (–40°F to +158°F)

Long-term operating relative humidity [RH] 5% RH to 95% RH, non-condensing

Long-term operating altitude [m(ft.)] –60 m to +5000 m (–196.85 ft to +16404.20 ft)

Atmospheric pressure [kPa] 53kPa - 106kPa ETSI 300 019-2-3

Ground Ground

USB 1 x USB 2.0 (host type A) port

MTBF [year] 50

MTTR [hour] 2

Maximum power consumption [W] 25.06

Maximum heat dissipation [BTU/hour] 85.50
