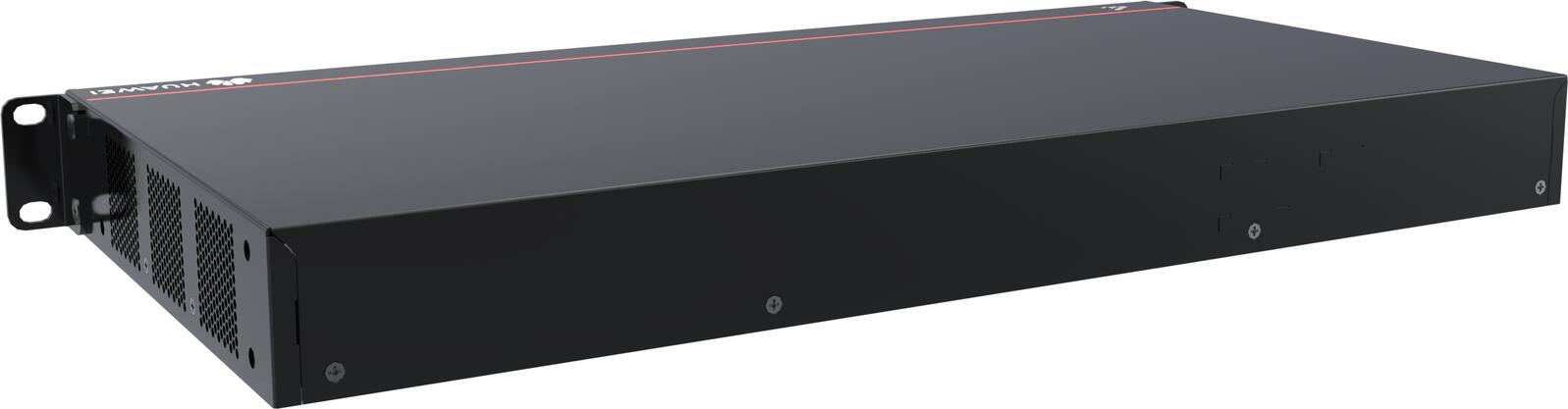

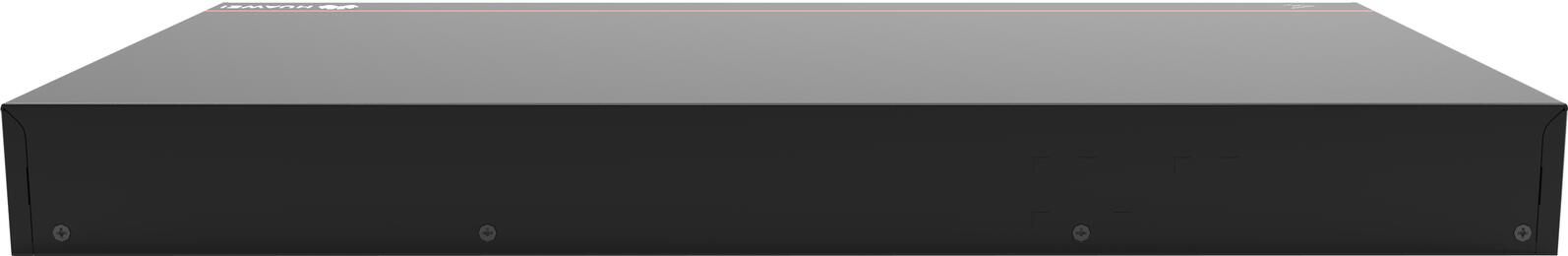

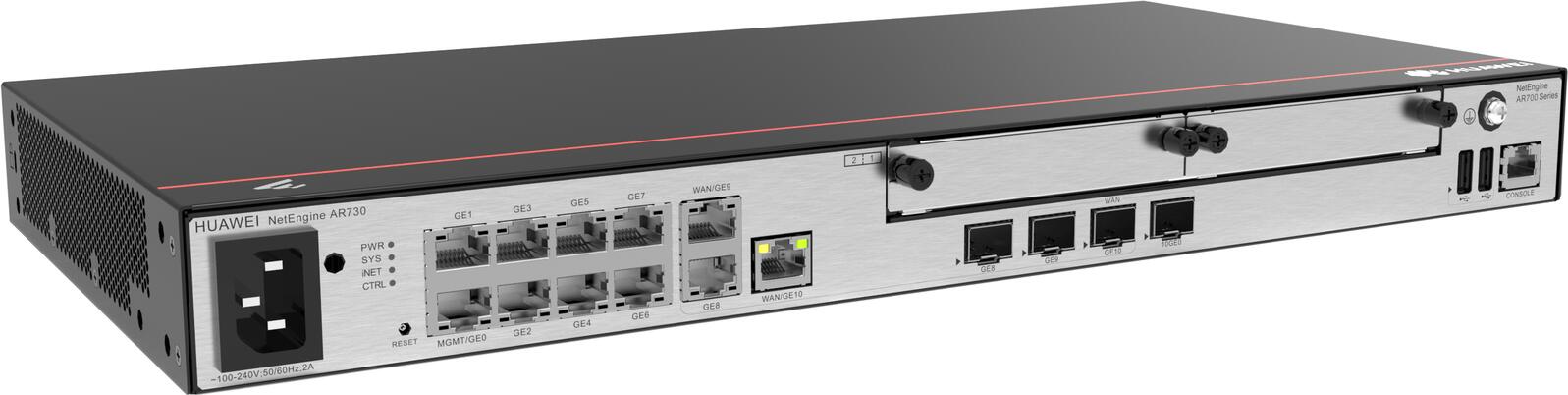

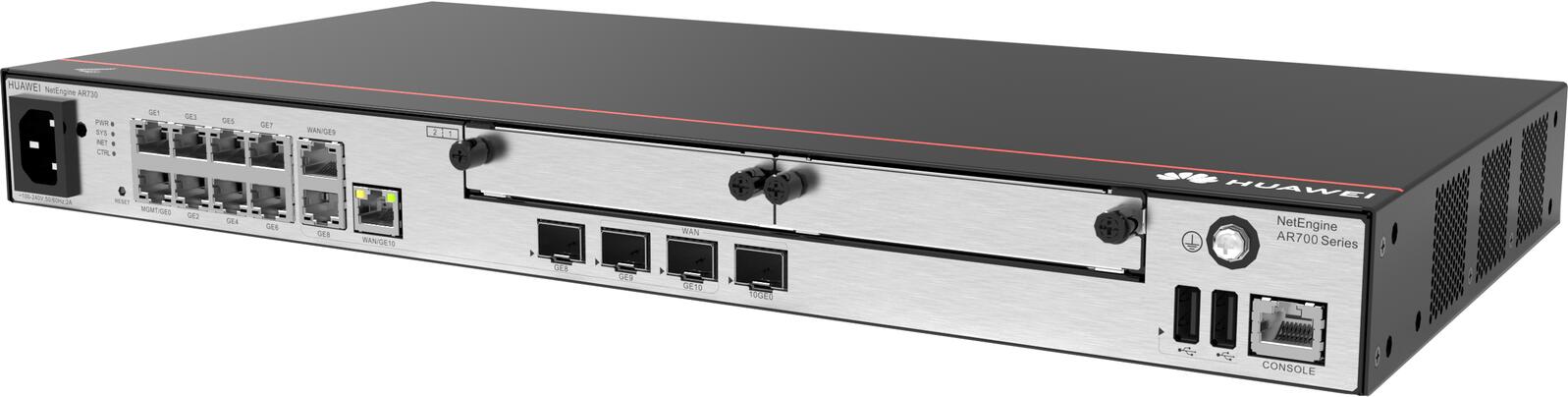

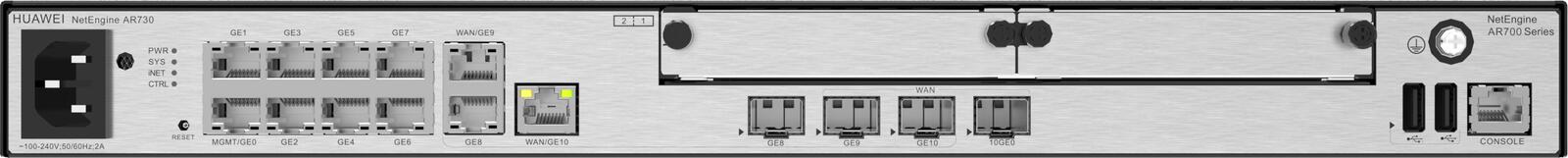

Huawei eKit Gateway AR730 8x 1GbE LAN + 2x GbE Combo WAN, 1x 10GbE SFP WAN 02354GBM-001

Remarks When configuring cards, ensure that the total power of the configured cards does not exceed 37 W or contact technical support engineers to obtain more suggestions.

Installation type Rack,Work bench,Against the wall

Dimensions without packaging (H x W x D) [mm(in.)] - Basic dimensions (excluding the parts protruding from the body): 44.4 mm x 442.0 mm x 220.4 mm (1.75 in. x 17.41 in. x 8.68 in.) - Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 44.4 mm x 442.0 mm x 225.2 mm (1.75 in. x 17.41 in. x 8.87 in.)

Dimensions with packaging (H x W x D) [mm(in.)] 90 mm x 390 mm x 570 mm (3.54 in. x 15.35 in. x 22.44 in.)

Weight with packaging [kg(lb)] 4.6 (10.12)

Weight without packaging [kg(lb)] 3.2 (7.04)

Console port RJ45

RTC Supported

Maximum power consumption [W] 33

Power supply mode AC built-in

Number of power modules 1

Rated input voltage [V] 100 V to 240 V, 50 Hz/60 Hz

Input voltage range [V] 90 V to 264 V, 47 Hz to 63 Hz

Maximum input current [A] 2

Maximum output power [W] 70

Safety regulation certification IEC/EN/UL60950-1 IEC/EN/UL62368-1 GB 4943.1

EMC certification EN 55032 EN 55035 CISPR 32 GB 9254 EN 55024 CISPR 24 GB/T 17618 EN 300 386 VCCI-CISPR 32 AS/NZS CISPR32 IEC 61000-3-2/EN 61000-3-2 IEC 61000-3-3/EN 61000-3-3

Type of fans Built-in

Heat dissipation mode Air cooling

Airflow direction Left to right

Extended slots (standard configuration) 2 x SIC

Number of service board slots 2

Noise at normal temperature (acoustic power) [dB(A)] 52.3 dB(A)

Long-term operating temperature [°C(°F)] 0°C to 45°C (32°F to 113°F) Note: When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

Storage temperature [°C(°F)] -40°C to +70°C (-40°F to +158°F)

Long-term operating relative humidity [RH] 5% to 95%, noncondensing

Long-term operating altitude [m(ft.)] < 5000 m (16404.2 ft.)

Availability 0.9999924012
