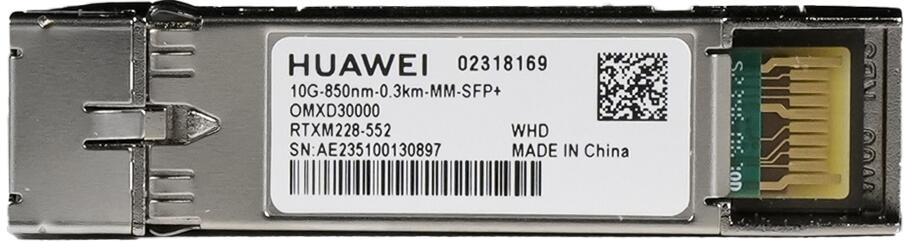

Huawei eKit Transceiver OMXD30000 Multi-Mode 10G SFP+ LC 300m 02318169

Part Number 2318169

Model OMXD30000

Description Optical Transceiver,SFP+,10G,Multi-mode Module(850nm,0.3km,LC)

Level-1 category 10GE SFP+ Optical Modules

Module name OMXD30000

Connector type LC/DLC

Optical fiber type MMF

Form factor SFP+

Transmission rate [bit/s] 10G

Target transmission distance [km] Multimode fiber (with diameter of 62.5 μm): 26 m Multimode fiber (OM1) (with diameter of 62.5 μm): 33 m Multimode fiber (with diameter of 50 μm): 66 m Multimode fiber (OM2) (with diameter of 50 μm): 82 m Multimode fiber (OM3) (with diameter of 50 μm): 300 m Multimode fiber (OM4) (with diameter of 50 μm): 400 m

Application standard/Type 10GBASE-SR

Working case temperature [°C(°F)] 0°C to 70°C (32°F to 158°F)

Type of the end face of the fiber ceramic ferrule PC or UPC

DDM options Supported

Modal bandwidth [MHz*km] Multimode fiber: 160 MHz*km Multimode fiber (OM1): 200 MHz*km Multimode fiber: 400 MHz*km Multimode fiber (OM2): 500 MHz*km Multimode fiber (OM3): 2000 MHz*km Multimode fiber (OM4): 4700 MHz*km

Center wavelength [nm] 850

Overload power (AVG) [dbm] -1

Minimum Tx optical power (AVG) [dbm] -7.3

Maximum Tx optical power (AVG) [dbm] -1

Minimum extinction ratio [db] 3

Rx sensitivity (OMA) [dbm] -11.1
